Differential and Housing for 2005 Dodge Sprinter 2500

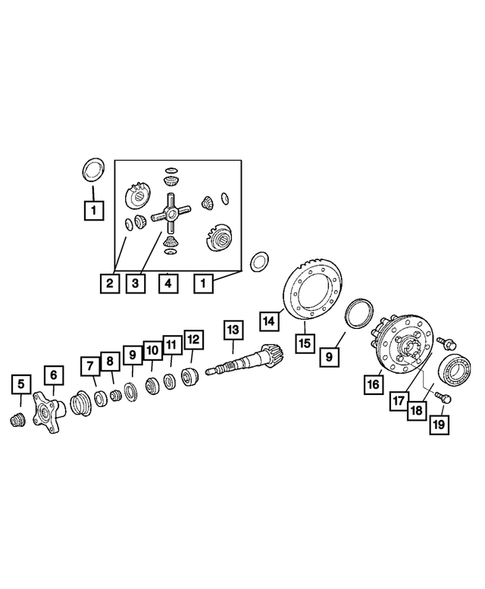

Differential and Housing for 2005 Dodge Sprinter 2500 #0

Differential and Housing for 2005 Dodge Sprinter 2500 #1

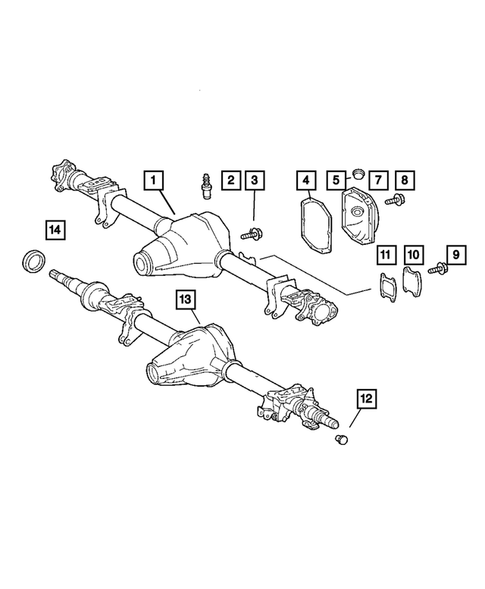

Differential and Housing for 2005 Dodge Sprinter 2500 #2

Differential and Housing for 2005 Dodge Sprinter 2500 #0

1

1

10

11

12

13

14

15

16

17

18

19

2

4

5

6

7

8

9

9

No.

Part # / Description / Price

Price

1

5136819AA - Rear Axle: Side Gear Thrust Washer for Dodge: Sprinter 2500, Sprinter 3500 Image

Side Gear Thrust Washer

Mopar

Mopar

Description: [1.40 MM Brass]. [1.40mm Brass]. 1.35 MM Brass.

2

5136148AA - Rear Axle: Pinion Gear Washer, Thrust for Dodge: Sprinter 2500, Sprinter 3500 Image

Pinion Gear Washer, Thrust

Mopar

Mopar

4

5137602AA - Rear Axle: Differential Gear Package for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Gear Package

Mopar

Mopar

Description: DIFFERENTIAL PINION

4

68066896AA - Rear Axle: Differential Gear Package for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Gear Package

Mopar

Mopar

Description: With Special Version Code [504004 07].

5

5103957AA - Rear Axle: Pinion Yoke Nut for Dodge: Sprinter 2500, Sprinter 3500 Image

Pinion Yoke Nut

Mopar

Mopar

Description: Up To Axle L538154 or X004694.

5

5103958AA - Rear Axle: Pinion Yoke Nut for Dodge: Sprinter 2500, Sprinter 3500 Image

Pinion Yoke Nut

Mopar

Mopar

Description: From Axle L538155 or X004695.

6

5134541AA - Rear Axle: Driveshaft Yoke Flange for Dodge: Sprinter 2500, Sprinter 3500 Image

Drive Shaft Yoke Flange

Mopar

Mopar

7

5103966AA - Rear Axle: Pinion Flange Ring for Dodge: Sprinter 2500, Sprinter 3500 Image

Pinion Flange Ring

Mopar

Mopar

8

68000011AA - Rear Axle: Drive Pinion Bearing Spacer for Dodge: Sprinter 2500, Sprinter 3500 Image

Drive Pinion Bearing Spacer

Mopar

Mopar

Description: After [02/2004]. Inside Diameter [34MM] Length [21MM] Up To Rear Axle Number [X519044]. Large.

9

5134434AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.72 mm]. [5.72mm].

9

5134468AB - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.30 mm]. [6.30mm].

9

5134418AB - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [4.96 mm]. [4.96mm].

9

5134421AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.02 mm]. [5.02mm].

9

5134469AB - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.38 mm]. [6.38mm].

9

5134435AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.76 mm]. [5.78 mm]. [5.78mm].

9

5134422AB - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.06 mm]. [5.06mm].

9

5134417AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [4.92 mm]. [4.92mm].

9

5134427AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.24 mm]. [5.24mm].

9

5134420AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.02 mm]. [5.02mm].

9

5134425AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.20 mm]. [5.20mm].

9

5134428AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.28 mm]. [5.28mm].

9

5134423AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.12 mm]. [5.12mm].

9

5134416AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [4.92 mm]. [4.92mm].

9

5134440AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.96 mm]. [5.96mm].

9

5134467AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.20 mm]. [6.20mm].

9

5134438AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.88 mm]. [5.88mm].

9

5134419AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.00 mm]. [5.00mm].

9

5134469AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.38 mm]. [6.38mm].

9

5134437AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.84 mm]. [5.84mm].

9

5134466AB - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.10 mm]. [6.10mm].

9

5134441AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.00 mm]. [6.00mm].

9

5134415AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [4.90 mm]. [4.90mm].

9

5134433AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.60 mm]. [5.60mm].

9

5134429AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.32 mm]. [5.32mm].

9

5134436AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.80 mm]. [5.80mm].

9

5134432AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.50 mm]. [5.50mm].

9

5134431AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.40 mm]. [5.40mm].

9

5134465AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [5.12 mm]. [5.12mm].

9

5134439AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.92 mm]. [5.92mm].

9

5134430AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [5.36 mm]. [5.36mm].

9

5134466AA - Rear Axle: Axle Shim for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Shim

Mopar

Mopar

Description: [6.10 mm].

10

5136772AA - Rear Axle: Bearing, Front for Dodge: Sprinter 2500, Sprinter 3500 Image

Bearing, Front

Mopar

Mopar

11

5103900AA - Rear Axle: Drive Pinion Seal for Dodge: Sprinter 2500, Sprinter 3500 Image

Drive Pinion Seal

Mopar

Mopar

12

5134442AA - Rear Axle: Drive Pinion Bearing, Rear for Dodge: Sprinter 2500, Sprinter 3500 Image

Drive Pinion Bearing, Rear

Mopar

Mopar

13

5136773AB - Rear Axle: Differential Pinion for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Ring Gear

Mopar

Mopar

13

5136773AA - Rear Axle: Differential Pinion for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Pinion

Mopar

Mopar

14

5136774AA - Rear Axle: Differential Ring Gear for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Ring Gear

Mopar

Mopar

15

5136156AA - Rear Axle: Ring And Pinion Gear Kit for Dodge: Sprinter 2500, Sprinter 3500 Image

Ring And Pinion Gear Kit

Mopar

Mopar

16

5137618AA - Rear Axle: Differential Case for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Case

Mopar

Mopar

17

5103849AA - Rear Axle: Bolt, Mounting for Dodge: Sprinter 2500, Sprinter 3500 Image

Bolt, Mounting

Mopar

Mopar

Description: Ring Gear.

18

5097700AA - Rear Axle: Differential Bearing for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Bearing

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

19

5136178AA - Rear Axle: Differential Screw, Mounting for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Screw, Mounting

Mopar

Mopar

Description: Differential Case Half.

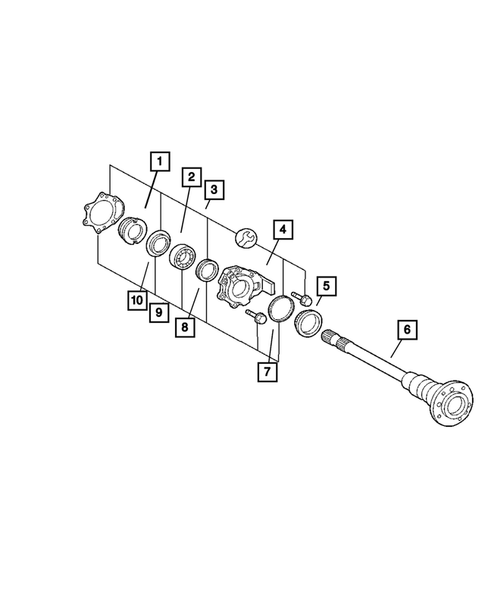

Differential and Housing for 2005 Dodge Sprinter 2500 #1

1

10

2

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

1

5134634AA - Rear Axle: Axle Shaft Nut, Right for Dodge: Sprinter 2500 Image

Axle Shaft Nut, Right

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

1

5134635AA - Rear Axle: Axle Shaft Nut, Left for Dodge: Sprinter 2500 Image

Axle Shaft Nut, Left

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

2

5103883AA - Rear Axle: Wheel Bearing, Right Or Left for Dodge: Sprinter 2500 Image

Wheel Bearing

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

2

5103883AB - Rear Axle: Wheel Bearing, Right Or Left for Dodge: Sprinter 2500 Image

Wheel Bearing

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

3

5104559AA - Rear Axle: Axle Shaft Seal Kit, Right Or Left for Dodge: Sprinter 2500 Image

Axle Shaft Seal Kit

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

4

5134638AA - Rear Axle: Axle Bearing Cover, Right for Dodge: Sprinter 2500 Image

Axle Bearing Cover, Right

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

Description: From Rear Axle L833738 or X246062 or Z122708.

4

5134639AB - Rear Axle: Axle Bearing Cover, Left for Dodge: Sprinter 2500 Image

Axle Bearing Cover, Left

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

Description: From Rear Axle L833738 or X246062 or Z122708.

4

5134638AB - Rear Axle: Axle Bearing Cover, Right for Dodge: Sprinter 2500 Image

Axle Bearing Cover, Right

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

Description: From Rear Axle L833738 or X246062 or Z122708.

4

5134639AA - Rear Axle: Axle Bearing Cover, Left for Dodge: Sprinter 2500 Image

Axle Bearing Cover, Left

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

Description: From Rear Axle L833738 or X246062 or Z122708.

5

5134641AA - Rear Axle: Sensor Tone Ring, Right Or Left for Dodge: Sprinter 2500 Image

Sensor Tone Ring

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. 2.7L I5 TURBO DIESEL ENGINE.

Description: From Axle L653743 or X0904897 or Z020254.

6

5179119AA - Rear Axle: Axle Shaft, Left for Dodge: Sprinter 2500 Image

Axle Shaft, Left

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE.

Description: Up To Axle [L653743].

6

5179120AA - Rear Axle: Axle Shaft, Right for Dodge: Sprinter 2500 Image

Axle Shaft, Right

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE.

Description: From Rear Axle L874989 or X304861 or Z161214.

7

5104566AA - Rear Axle: Rear Axle Flange Seal for Dodge: Sprinter 2500 Image

Rear Axle Flange Seal

Mopar

Mopar

8

5139760AA - Rear Axle: Rear Axle Flange Seal for Dodge: Sprinter 2500 Image

Rear Axle Flange Seal

Mopar

Mopar

9

5103601AA - Rear Axle: Axle Shaft Bearing Kit for Dodge: Sprinter 2500 Image

Axle Shaft Bearing Kit

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

10

5139738AA - Rear Axle: Hub Nut Lock for Dodge: Sprinter 2500 Image

Hub Nut Lock

Mopar

Mopar

Differential and Housing for 2005 Dodge Sprinter 2500 #2

10

11

12

2

3

4

5

7

8

9

No.

Part # / Description / Price

Price

N/A

5134372AA - Rear Axle: Gasket, Mounting for Dodge: Sprinter 2500, Sprinter 3500 Image

Gasket, Mounting

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Oil Filling and Oil Drain Plug.

2

5103948AA - Rear Axle: Axle Vent for Dodge: Sprinter 2500, Sprinter 3500 Image

Axle Vent

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

3

6104225AA - Rear Axle: Hex Head Bolt, Mounting for Chrysler: 200, Sebring | Dodge: Avenger, Journey, Sprinter 2500, Sprinter 3500 | Jeep: Cherokee, Compass, Grand Cherokee, Wrangler Image

Hex Flange Head Bolt, Mounting

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: M10x1.50x80.00. Timing Case Cover To Cylinder Block. Engine Mount Bracket To Transmission. Engine Mount Support Bracket To Cylinder Block. Carrier Bearing Cap.

4

5103574AA - Rear Axle: Differential Cover Gasket for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Cover Gasket, Mounting

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

5

6508412AA - Rear Axle: Oil Drain Plug for Chrysler: 300, Crossfire | Dodge: Challenger, Charger, Durango, Magnum, Nitro, Sprinter 2500, Sprinter 3500 | Jeep: Commander, Grand Cherokee, Liberty, Wrangler, Wrangler JK | Ram: 1500, 1500 Classic Image

Plug

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: M24x1.50. Oil Filling and Oil Drain. Drain and Fill 225 mm.

MSRP $26.35

$18.94

MSRP $26.35

$18.94

7

5103953AB - Rear Axle: Differential Cover for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Cover

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

7

5103953AA - Rear Axle: Differential Cover for Dodge: Sprinter 2500, Sprinter 3500 Image

Differential Cover

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

8

5134371AA - Rear Axle: Screw And Washer, Mounting for Dodge: Sprinter 2500, Sprinter 3500 Image

Screw And Washer, Mounting

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Differential Cover.

9

6104195AA - Rear Axle: Screw, Mounting for Chrysler: 200, 300, Crossfire, Sebring | Dodge: Avenger, Caliber, Challenger, Charger, Durango, Journey, Magnum, Sprinter 2500, Sprinter 3500 | Fiat: 500 | Jeep: Commander, Compass, Gladiator, Grand Cherokee, Grand Cherokee L, Grand Cherokee WK, Grand Wagoneer, Patriot, Wagoneer, Wrangler | Ram: 1500, 1500 Classic, 2500, 3500, ProMaster 1500, ProMaster 2500, ProMaster 3500, ProMaster EV Image

Hex Flange Head Bolt

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Ground Strap Mounting M8x16.

MSRP $4.70

$3.33

MSRP $4.70

$3.33

10

5134668AA - Rear Axle: Cover for Dodge: Sprinter 2500 Image

Cover

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

Description: Axle Housing.

11

5134669AA - Rear Axle: Gasket, Mounting for Dodge: Sprinter 2500 Image

Gasket, Mounting

Mopar

Mopar

Notes: Engines: 2.7L I5 MERCEDES-BENZ TD ENGINE.

Description: Axle Housing Cover.

12

5133367AA - Rear Axle: Plug for Dodge: Sprinter 2500, Sprinter 3500 Image

Terminal

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: To Lock Holes for ABS. Flat Plug.
